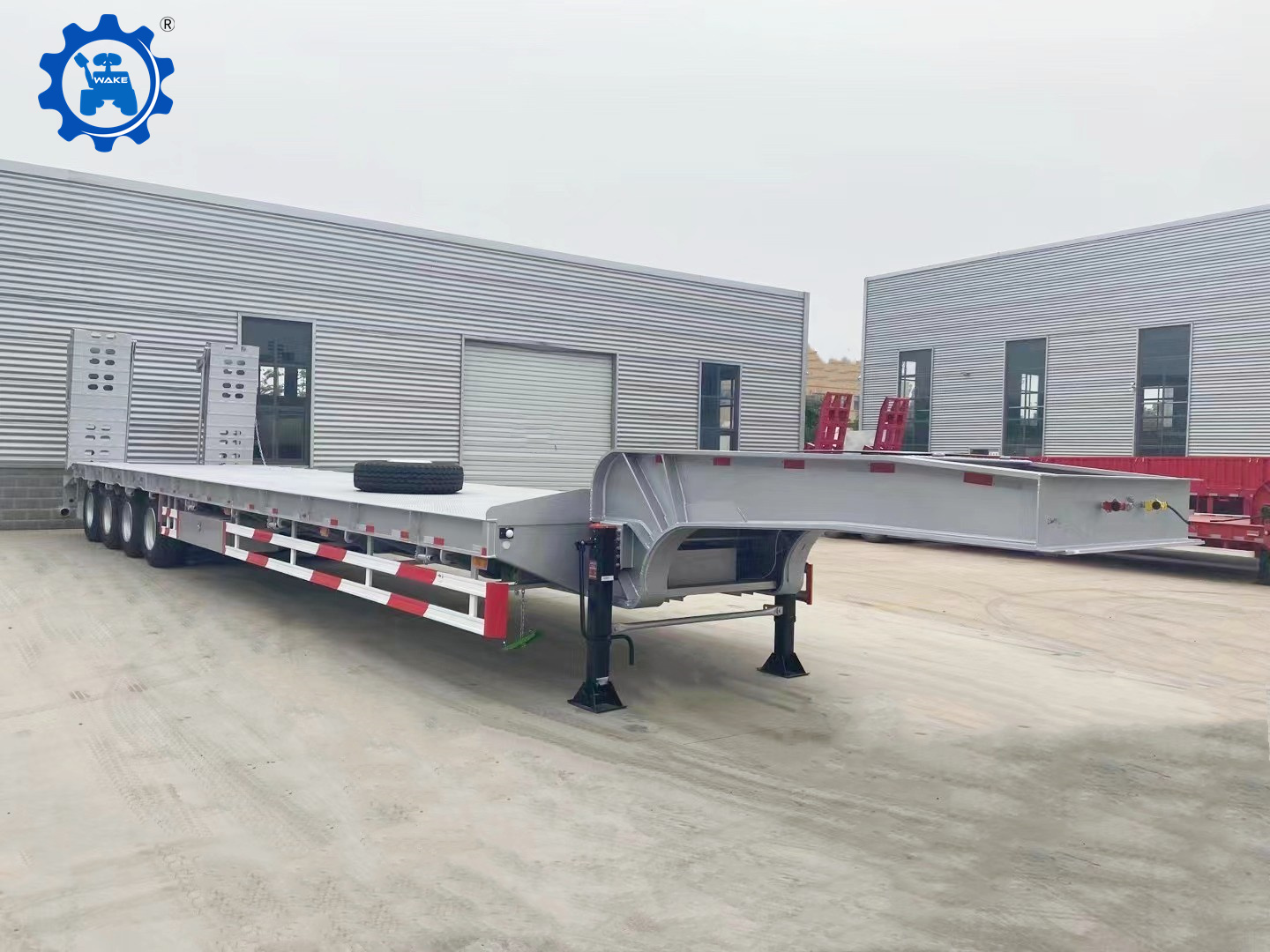

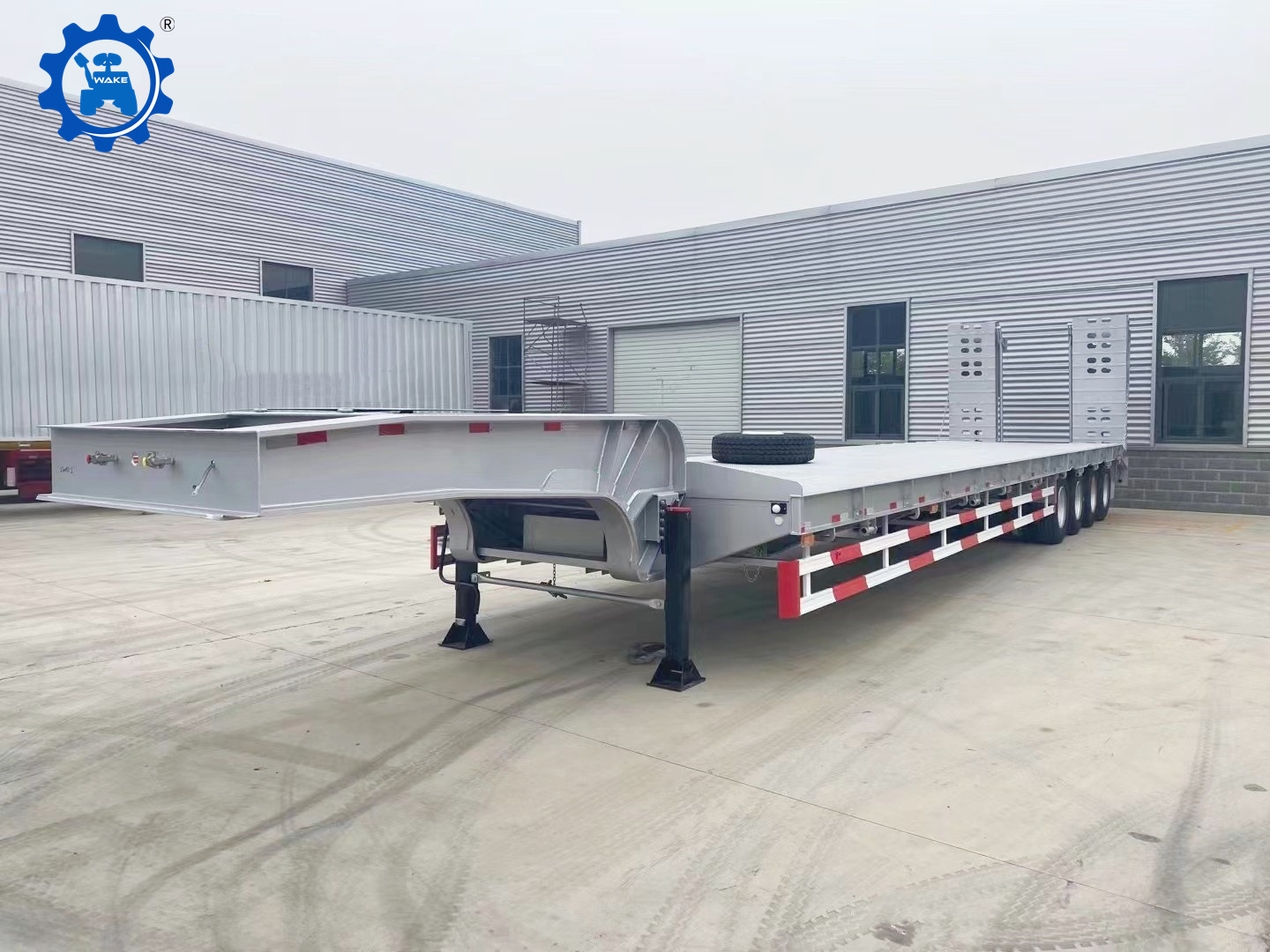

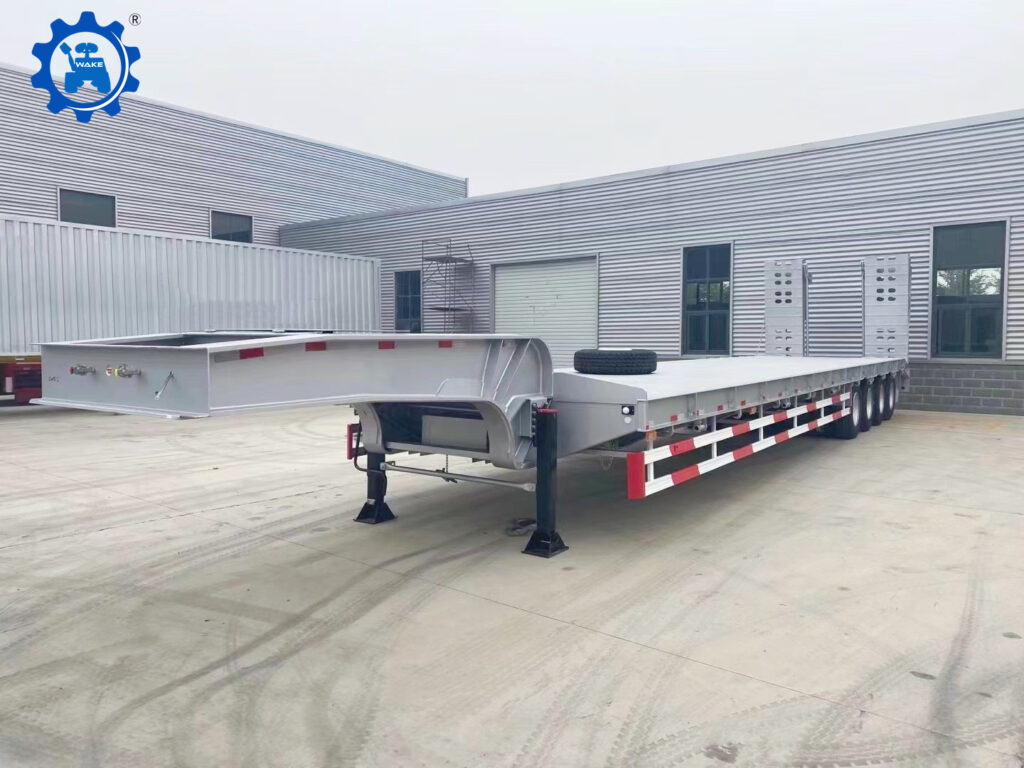

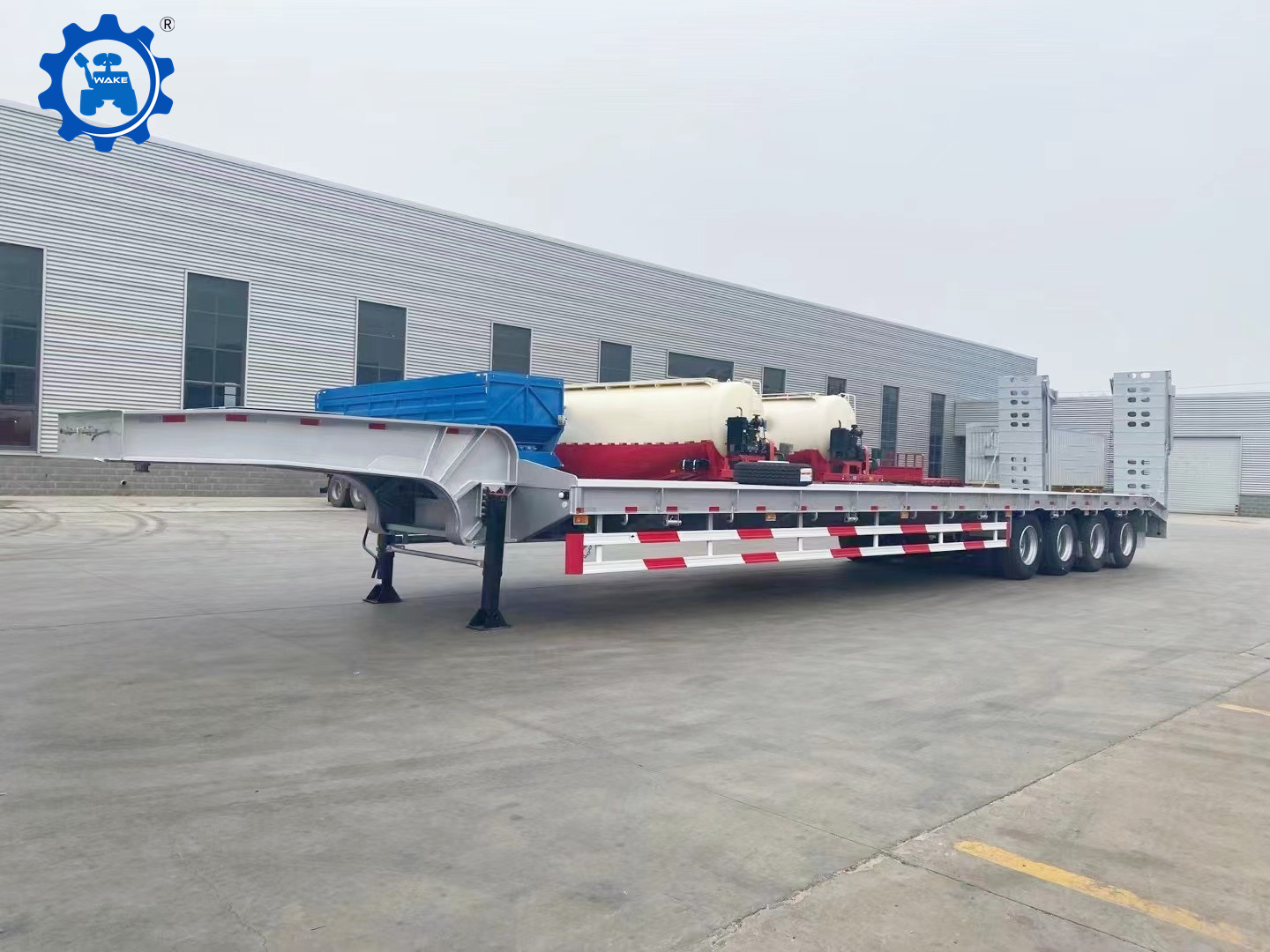

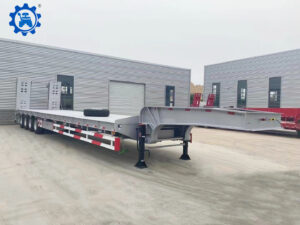

Hydraulic folding ramp lowbed trailer

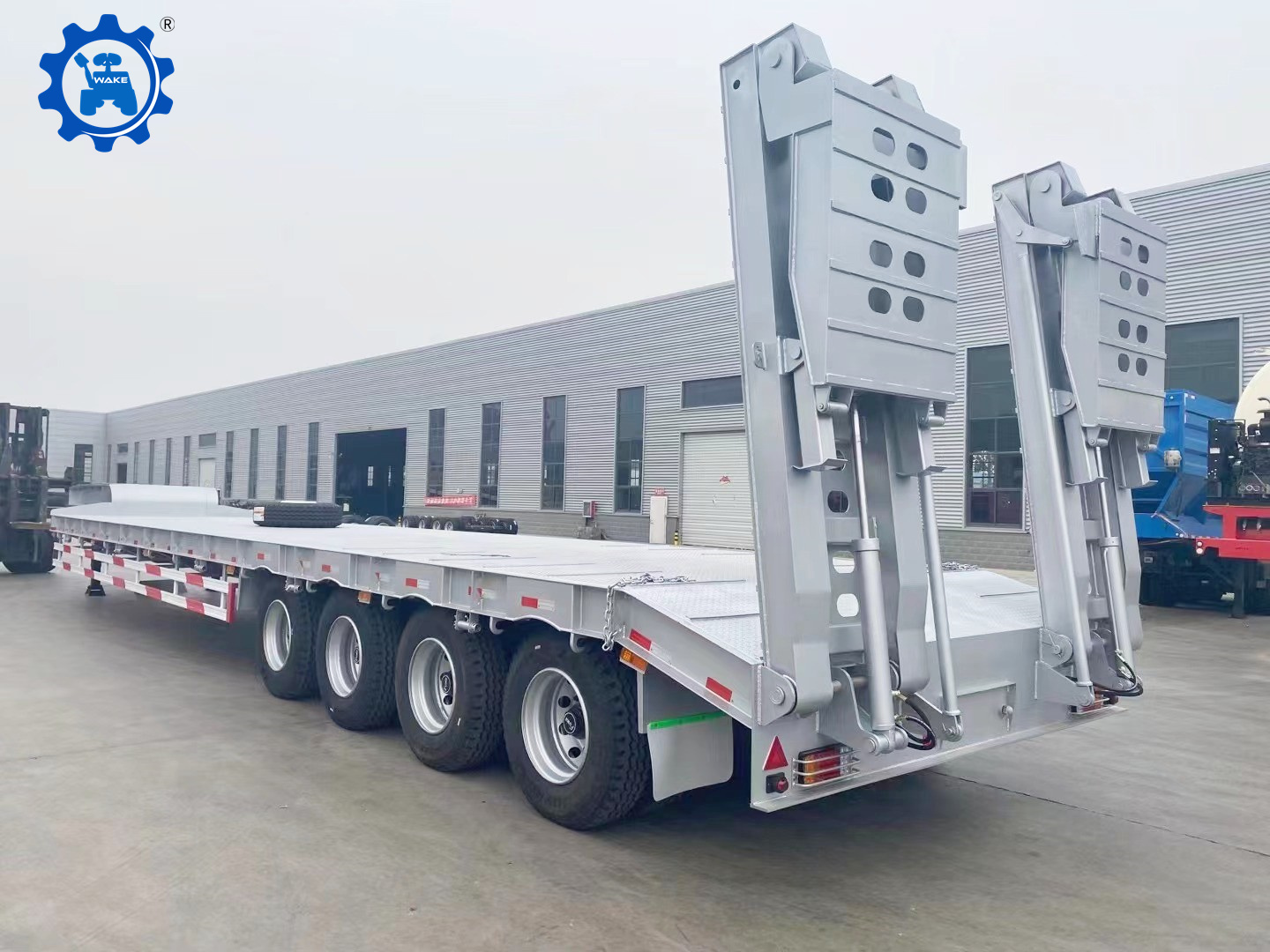

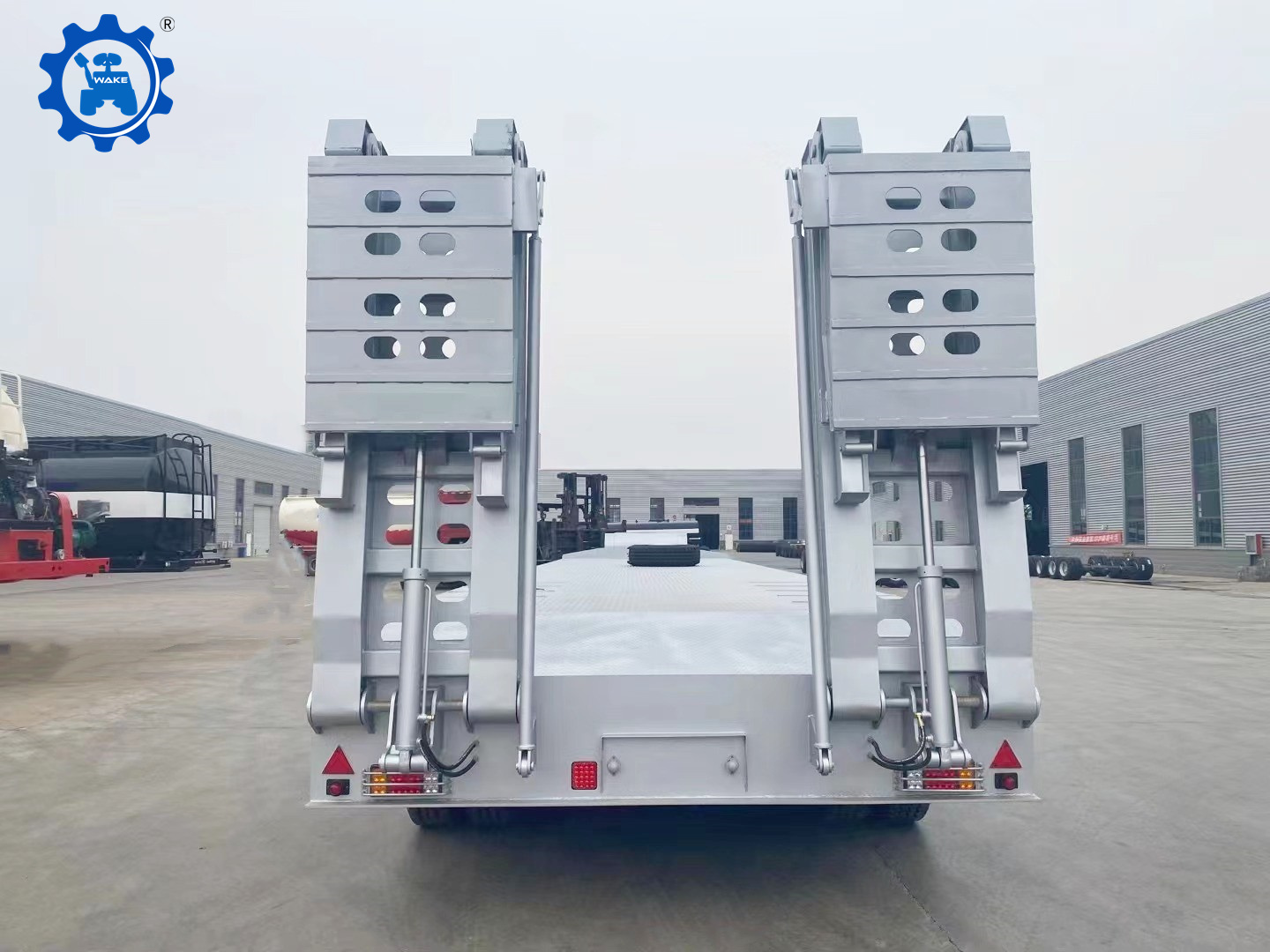

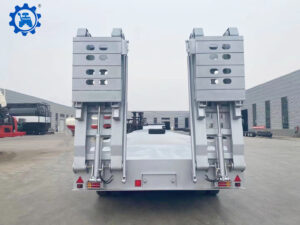

There are generally three types of ramps for low-bed trailers, four-in-one mechanical ramps, hydraulic ramps, and hydraulic folding ramps. This trailer is equipped with a hydraulic folding ramp, which has a lower slope and makes it easier to load and unload cargo.

The trailers all use trapezoidal scales (5mm thick bent steel plates), and the bottom plate is a 5mm thick patterned bottom plate. The gooseneck of the trailer and other places that are easily deformed and damaged have been thickened and reinforced.

Powder spray paint makes the trailer more beautiful and sturdy. This paint can protect the trailer for 7 years.

WAKE has been producing semi-trailers for nearly thirty years, and its rich experience gives you peace of mind.

Specification：

Overall dimension：15000mm * 3000mm *1710mm

Loading capacity: 80 ton

Axles：4 axles

Suspension：Heavy duty mechanical spring suspension

Tire：16 units

Landing gear：28 T

Brake system: WABCO

If you would like more details, please contact WAKE sales manager.
