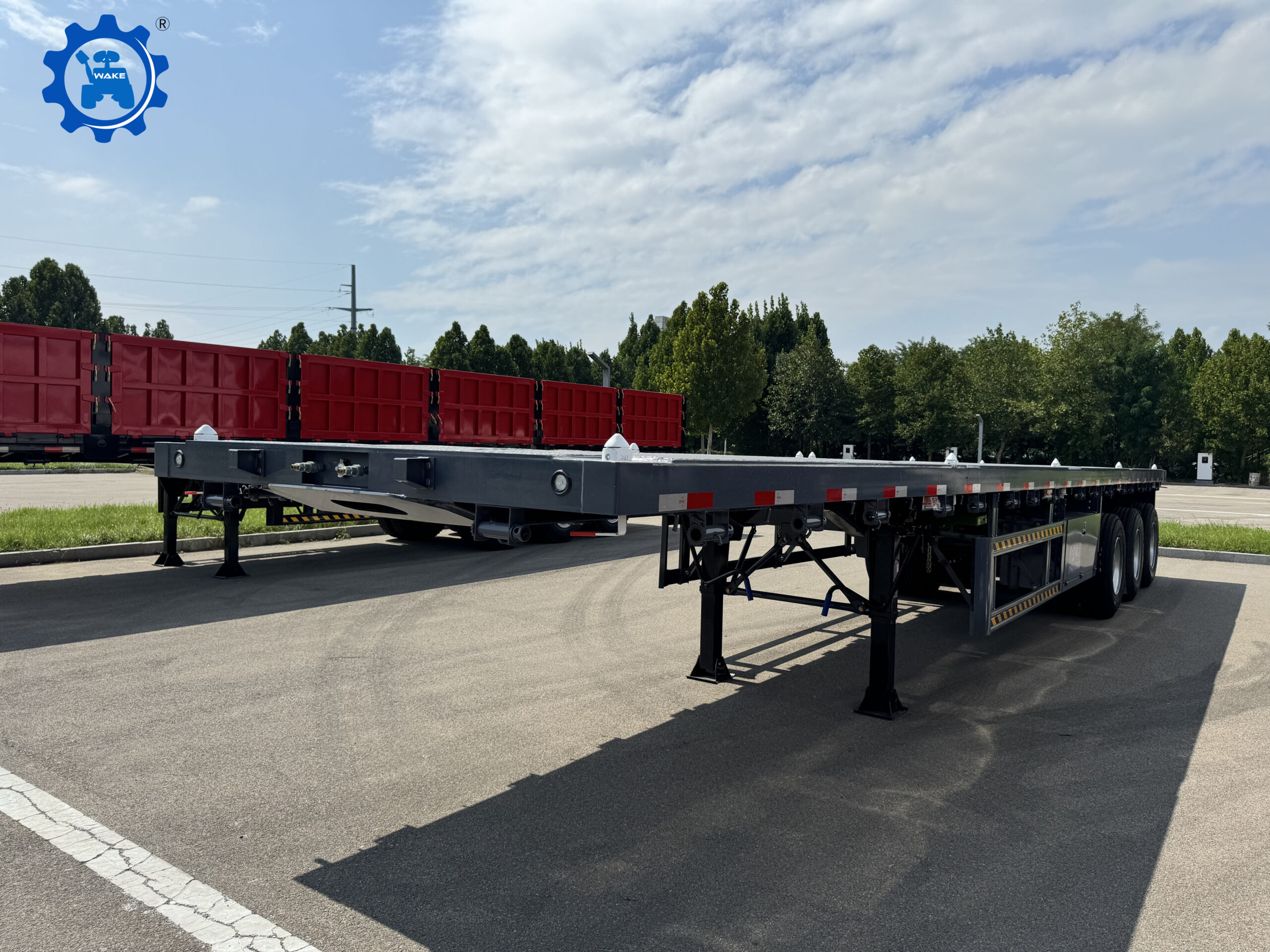

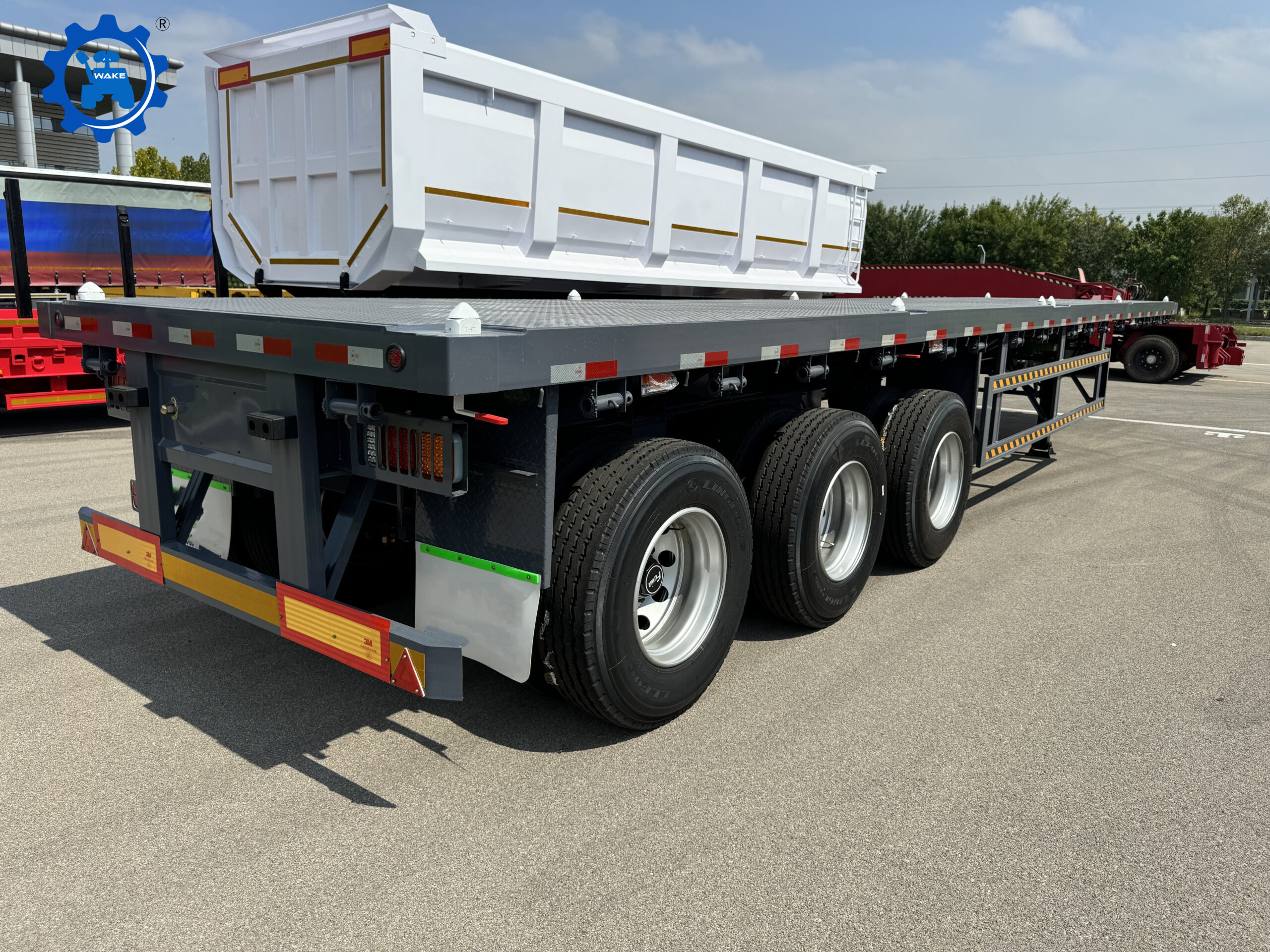

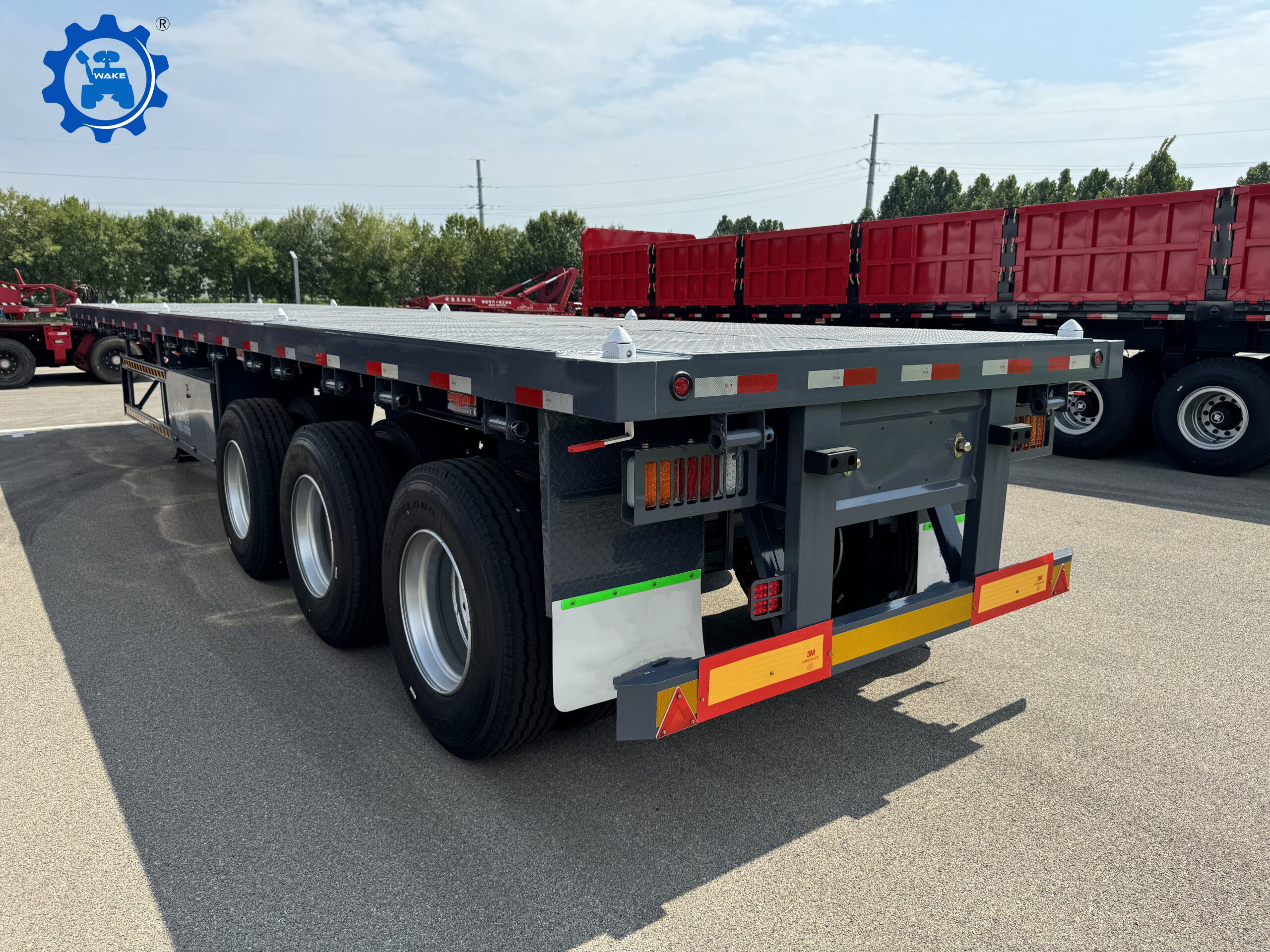

3 axle flatbed trailer

The container flatbed trailers produced by our factory are made of high-strength steel, with channel steel and I-beam in many places that are easily damaged or easily broken, which makes the trailer stronger and can cope with different road conditions.

The chassis of the trailer is reinforced, and the landing gear is reinforced by triangle, suspension, wheel socket, fender and bottom plate, so our trailer is very strong.

The number of axles of the trailer is optional and the load capacity can be customized.

Specification：

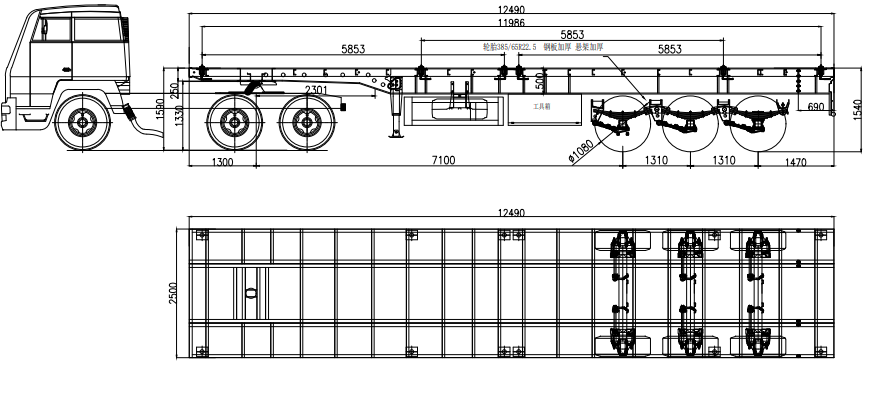

Overall dimension：12500mm * 2500mm *1550mm

Loading capacity: 60 ton

Axles：3 axles

Suspension：

Heavy duty mechanical spring suspension

Tire：12 units,12R22.5

Landing gear：28 T

Brake system: WABCO

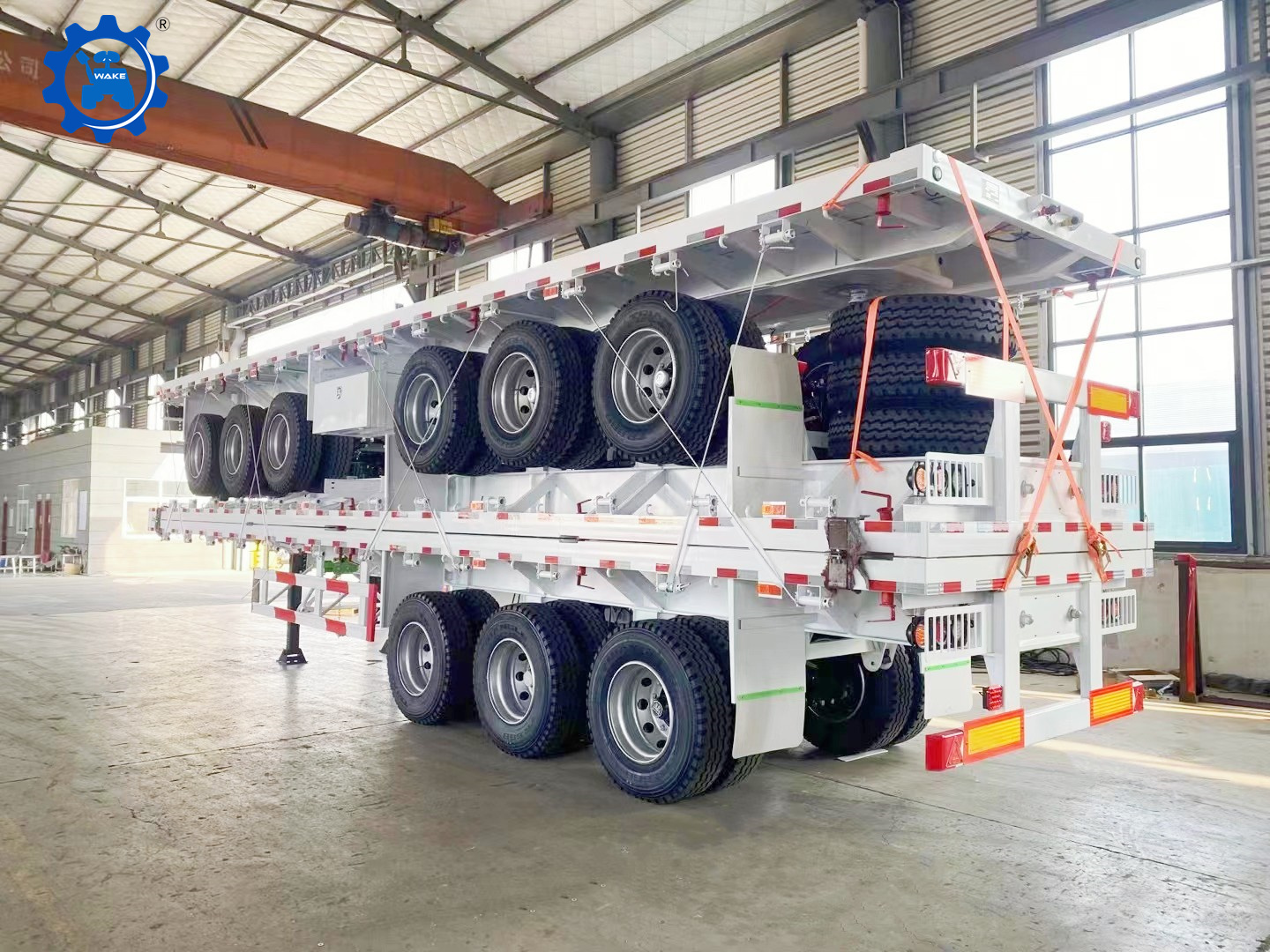

In order to save sea freight, container transportation can be used. Each 40 or 45 container can accommodate two trailers, or bulk ships can be used, with 3 units per group.
